Train Tracks
COUNTRY: Australia
MATERIAL: Rocks
MACHINE: Track Renewal and Laying Machine
COMPONENTS: 3x iSDR-C and 3x iDVR
DESCRIPTION
iBelt measures and keeps track of reclaimed and distributed ballast material during track renewal.
Machine Positioning
In-Pit Crushing and Conveying (IPCC)
ELEVATING SAFETY AND PRODUCTIVITY
ELEVATING SAFETY AND PRODUCTIVITY
iPosition serves as indurad’s comprehensive platform solution for enhancing safety, positioning accuracy, and automation in mobile continuous mining equipment, including in-pit crushing and conveying systems, leach pad automation systems, and more.
The solution is carefully designed to concurrently improve both safety and productivity, achieved through the integration of various sensor technologies, including 2D radar sensors, RTLS and GPS.
By fusing these three distinct technologies, a 2oo3 fail operation mode is achieved, boasting an impressive availability rate of 99.9%.
With successful installations across Mongolia, Brazil, Germany, and Chile, the system consistently demonstrates its effectiveness and reliability. Notably, certain systems in Germany have been in continuous operation for more than a decade.
1
perfect alignment
reliable transferpoint positioning
2
increased safety
redundant fail safe technology
SYSTEM OVERVIEW
SYSTEM OVERVIEW
indurad uses inhouse expertise in radar, GNSS and RTLS technology to provide probably the most advanced IPCC automation kit to the market.
EFFICIENT MATERIAL CONVEYING
EFFICIENT MATERIAL CONVEYING
indurad stands as the sole supplier providing both greenfield and brownfield automation solutions for IPCC equipment, utilizing an innovative combination of 2D radar, RTLS, and GNSSsystems.
This powerful blend of technologies ensures dependable and precise positioning, not only whenthe equipment is in close proximity but also during alignment or movement.
Moreover, the solution offers robust collision avoidance capabilities, enhancing safety and efficiency in the process.
By loading the video, you agree to YouTube's privacy policy.
Learn more
iPOSITION MOST TRUSTED SOLUTION
“We started with indurad´s 2D radar on the suspended hopper cars and based on the high availability of the manless-automation mode we have been rolling out the concept on the travelling hopper cars and on the spreader side where we replaced existing laser solutions providing now a better machine availability.
Finally, we reduced wear on the machinery as of reducing steering commands of about 20%"

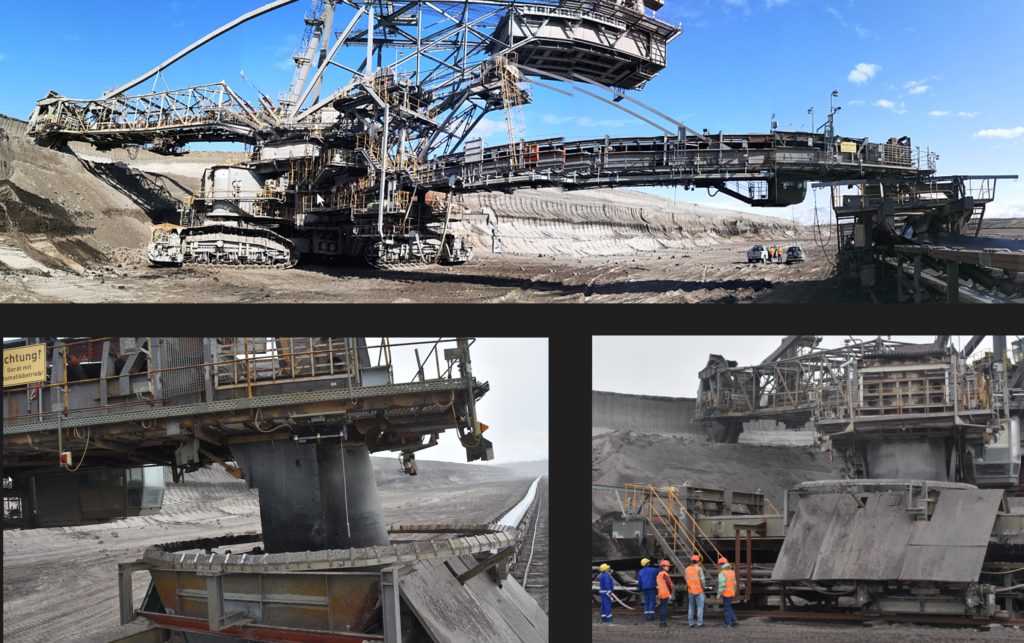

IPCC GERMANY
Realiable 2oo3 machine positioning
The solution is capable of ensuring a dependable alignment of transfer points for large equipment in IPCC operations. This is achieved through the implementation of a sensor fusion concept by indurad, guaranteeing accuracy and reliability in the alignment process.
increase Operating Time
Reduce unscheduled downtime by automated transferpoint alignment of the machines
increase Safety
Prevent collisions between machines by automatic movement and alignment
alignment and automation
BELTWAGON GERMANY
Machine positioning and collision avoidance
By utilizing 2D radar technology, the beltwagon can be accurately aligned with the beltconveyor, enabling automated beltwagon movement and ensuring collision prevention.
Increase Operating Time
Reduce unscheduled downtime by automated alignment
Increase safety
Prevent collisions between machines by automatic movement and alignment
IPCC CHILE
Transfer car approaching and docking for
transfer point alignment based on radar
Automated alignment and docking rely on both 3D and 2D radar sensors to precisely position the bucket wheel reclaimer to the leach pad bridge.
increase Operating Time
by reducing alinment time
increase Productivity
increase crusher filling, to maintain choke feed
filling level
IPCC INNER MONGOLIA
Transfer point alignment between Mobile
Sizing Rig, Belt Bridge and Hopper
Implementing the sensor fusion concept for transfer point alignment among the Mobile Sizing Rig, mobile belt bridge, and hopper car.
increase Operating Time
precise and reliable positioning
increase Production Rate
maximizing uptime
PROVEN IN PRACTICE
PROVEN IN PRACTICE
International Mining | MAY 2020
PAPER ABOUT IPCC
Objective
- The aim is to achieve full automation of devices, eliminating the need for human intervention.
- Enhancing sensor availability by substituting laser sensors with advanced technology.
RESULTS
- The implementation has led to higher equipment availability.
- There is a notable reduction in machinery wear.
- Steering commands have been reduced by 20%.
- The return on investment (ROI) is achieved in less than 3 months.
Wood Chips
COUNTRY: Chile
MATERIAL: Wood Chips
COMPONENTS: iSDR, iDVR, iRPU-F
DESCRIPTION
Volume-Flow measurement of wet wood chips.
Guide-Plates
COUNTRY: Netherlands
MATERIAL: Coal
MACHINE: Barge loader
COMPONENTS: 2x iLDR-C
DESCRIPTION
iBelt measures belt alignment and material freeboard on boom belt, allowing for adapting machine control (guide plate positioning) to improve productivity, and to reduce wear.
Oil Sand
COUNTRY: Canada
MATERIAL: Oil Sand / Tar Sand
COMPONENTS: 2x iLDR-C, iSDR-C, iDVR, iRPU-F
DESCRIPTION
Volumetric flow measurement and belt alignment tracking.
Extreme environmental conditions (dirt, temperature).
By loading the video, you agree to YouTube's privacy policy.
Learn more
Safety & Efficiency
Glencore Nickel: A vision of Safety and Precision
A dust suppression system impaires visitoin of the human operator unloading vessels at at Port of Quebec. Indurad “restores” the operator’s vision using it’s 3D radar technology.
By loading the video, you agree to YouTube's privacy policy.
Learn more
Cost down, revenue up
indurad is a leader in making mining and dry bulk handling or processing easier and more cost effective. Based on our radar technology we offer various solutions and also sensors with OEM interfaces such as ROS2.
