Train Tracks
COUNTRY: Australia
MATERIAL: Rocks
MACHINE: Track Renewal and Laying Machine
COMPONENTS: 3x iSDR-C and 3x iDVR
DESCRIPTION
iBelt measures and keeps track of reclaimed and distributed ballast material during track renewal.
iStockpile
Full visibility of your inventory
MADE FOR ACCURATE REALTIME INVENTORY CONTROL
MADE FOR ACCURATE REALTIME INVENTORY CONTROL.
iStockpile is truly the best solution on the market for accurate and live 3D inventory control of all types of stockpiles, adding value to a wide range of bulk material handling processes. From simple 3D material profile scanning to advanced features such as dead bulk detection, reclaim feeder control, material quality control and more. iStockpile is a unique and reliable step-by-step implementation solution.
The underlying robust and precise indurad radar technology makes iStockpile the reliable data source for material handling optimization/automation in any stockpile.
1
increase productivity up to 10%
ingo and outgo automation, no manual surveying
2
increase capacity up to 15%
understand & eliminate/reduce dead bulk zones
3
increase safety
slope angles, rat holeing, remote control, worker exposure
4
deliver up to spec
optimize blending processes to the point
TWO EXCELLENT SCAN STRATEGIES
Stockpile measurement can be achieved through two primary methods, which can also be employed in combination. For stockpiles managed by tripper cars, A-frame reclaimers, or similar equipment, a position sensor and a 2D radar are integrated into the handling equipment. As the equipment moves, it continuously captures data, generating a 3D image of the stockpile in real-time. Alternatively, in situations where continuous scanning is required or no handling equipment is present, fixed 3D radars are strategically installed above the bulk material to provide accurate and consistent measurements.
iSTOCKPILE-MOBILE
iSTOCKPILE-MOBILE
iSTOCKPILE-FIXED
iSTOCKPILE-FIXED
By loading the video, you agree to YouTube's privacy policy.
Learn more
DIFFERENT OPTIONS FOR YOUR STOCKPILE
EFFICIENT MATERIAL PROCESSING
EFFICIENT MATERIAL PROCESSING
The backbone of the iStockpile solution are components designed and manufactured in Germany specifically for the mining and bulk materials handling industries. Durability and longevity are the key development principles. Many customers are using solutions delivered since 2009 until today.
By loading the video, you agree to YouTube's privacy policy.
Learn more
RADAR SENSORS
UNPRECEDENTED RESULTS IN DUSTY CONDITIONS
A-FRAME STACKER / RECLAIMER
3D, cutting assistance, collision avoidance
The solution utilizes an iLDR-H 1D-radar for accurate linear measurement of the travel position of the A-frame reclaimer. Additionally, 2D-radar sensors installed on the portal measure the stockpile in 3D, track the machine-to-material clearance, and provide input for cutting assistance during the process. It sets the basis to stacking homogeneous piles, through optimized material distribution and arrangement, for improved efficiency and uniformity.
improved reclaiming rate
continious reclaiming, avoiding avalanches
inventory information
and automatic blending functionalities
2D radar sensors mounted on a tripper car
TRIPPER CAR
volumetric measurement and linear position
By combining 2D radar sensors with 1D linear measurement devices, the system generates a precise 3D surface representation of the entire stockpile. Leveraging this data, the system can automatically control the movement of trippers to ensure the creation of homogeneous piles.
tripper car automation
utlizing stockpile in the best way
3D online inventory informaton
exact representation of the stockpile in real time
FIXED SENSOR INSTALL
3D inventory information at all times
Regardless of the position of the tripper car, this option provides accurate inventory information at all times.

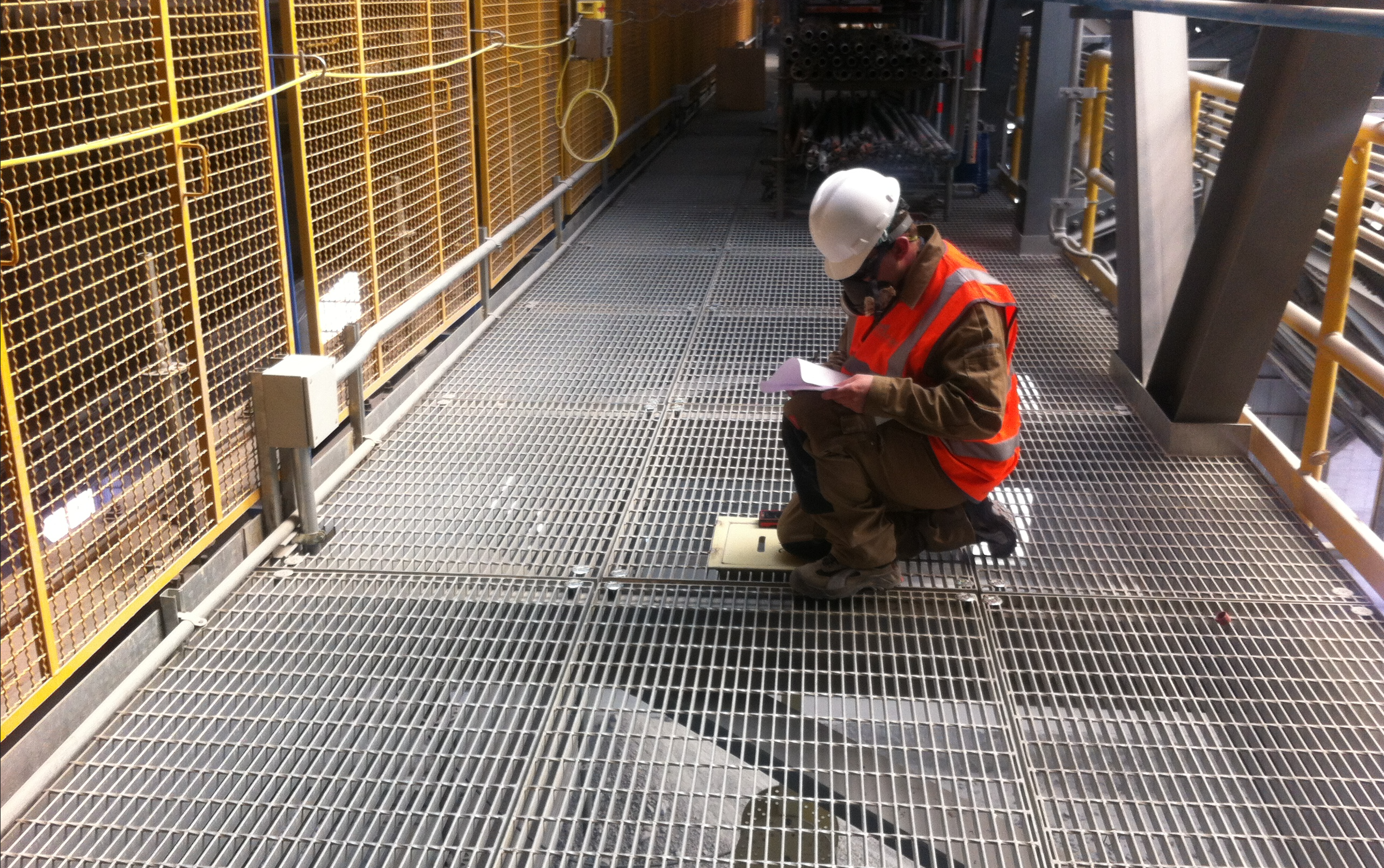

Sensors can be installed inside buildings – for example, under walkways or on other structures. All sensors are connected via Ethernet to a central processing unit, which then makes the information available company-wide.
increase operating time
monitor material behavior & reduce unscheduled downtimes
increase productivity
maintain optimal inventory levels
3D model visualisation in webbrowser and in SCADA system
3D MODEL
advanced 3D inventory information
iStockpile offers a comprehensive 3D representation of the stockpile derived from radar data. This valuable information can be seamlessly integrated and shared with PLC and SCADA systems.
Moreover, the user-friendly Human-Machine Interface (HMI) provides a fully rotatable 3D image of the stockpile. Users can define specific areas, such as draw points and material qualities, and obtain essential data like volumes, maximum and minimum fill levels, and more, for these designated areas. This intuitive interface empowers users with precise insights and control over stockpile management and facilitates effective decision-making.
3D stockpile picture & volume information
webGL based easy accessible + SCADA + PLC
customizable zones
material specific area definition, draw point automation
4D VOXEL MODEL
linking 3D stockpile with material parameters
This software feature details the 3D model into a voxel model. Each voxel can be associated with data such as stacking time, material quality, or other.
Taken together, this provides accurate information about where specific material is located on the stockpile, enabling informed operational decisions.
material quality information
material parameters for each voxel (typical 25 x 25 x 25 cm)
exact overview of material value
on detailed or average level
material quality tracking and material distribution
5D FLOW MODEL
simulation of material flow
This software add-on leverages data from other modules to accurately calculate the quality of material on the feeders.
By utilizing the 3D model and the 4D Voxel software, it performs simulations of the material flow through the pile, offering valuable insights into the dynamics of material movement.
This feature facilitates the determination of available material quality for each feeder, forming the foundation for precise material blending. By utilizing this model, blending can be predicted and optimized, leading to improved material consistency and overall operational efficiency.
improved blending
material quality informaton on the drawpoints
significant savings
material blending to the point
Wood Chips
COUNTRY: Chile
MATERIAL: Wood Chips
COMPONENTS: iSDR, iDVR, iRPU-F
DESCRIPTION
Volume-Flow measurement of wet wood chips.
Guide-Plates
COUNTRY: Netherlands
MATERIAL: Coal
MACHINE: Barge loader
COMPONENTS: 2x iLDR-C
DESCRIPTION
iBelt measures belt alignment and material freeboard on boom belt, allowing for adapting machine control (guide plate positioning) to improve productivity, and to reduce wear.
Oil Sand
COUNTRY: Canada
MATERIAL: Oil Sand / Tar Sand
COMPONENTS: 2x iLDR-C, iSDR-C, iDVR, iRPU-F
DESCRIPTION
Volumetric flow measurement and belt alignment tracking.
Extreme environmental conditions (dirt, temperature).
By loading the video, you agree to YouTube's privacy policy.
Learn more
Safety & Efficiency
Glencore Nickel: A vision of Safety and Precision
A dust suppression system impaires visitoin of the human operator unloading vessels at at Port of Quebec. Indurad “restores” the operator’s vision using it’s 3D radar technology.
By loading the video, you agree to YouTube's privacy policy.
Learn more
Cost down, revenue up
indurad is a leader in making mining and dry bulk handling or processing easier and more cost effective. Based on our radar technology we offer various solutions and also sensors with OEM interfaces such as ROS2.
